Motion & Mechanism Development Starter Kit

Develop positioning stages, feeders and indexing mechanisms with integrated stepper drivers, encoder feedback and fixture I/O. PE10DM01 also provides step/direction commands for compatible external motor drivers.

Included hardware

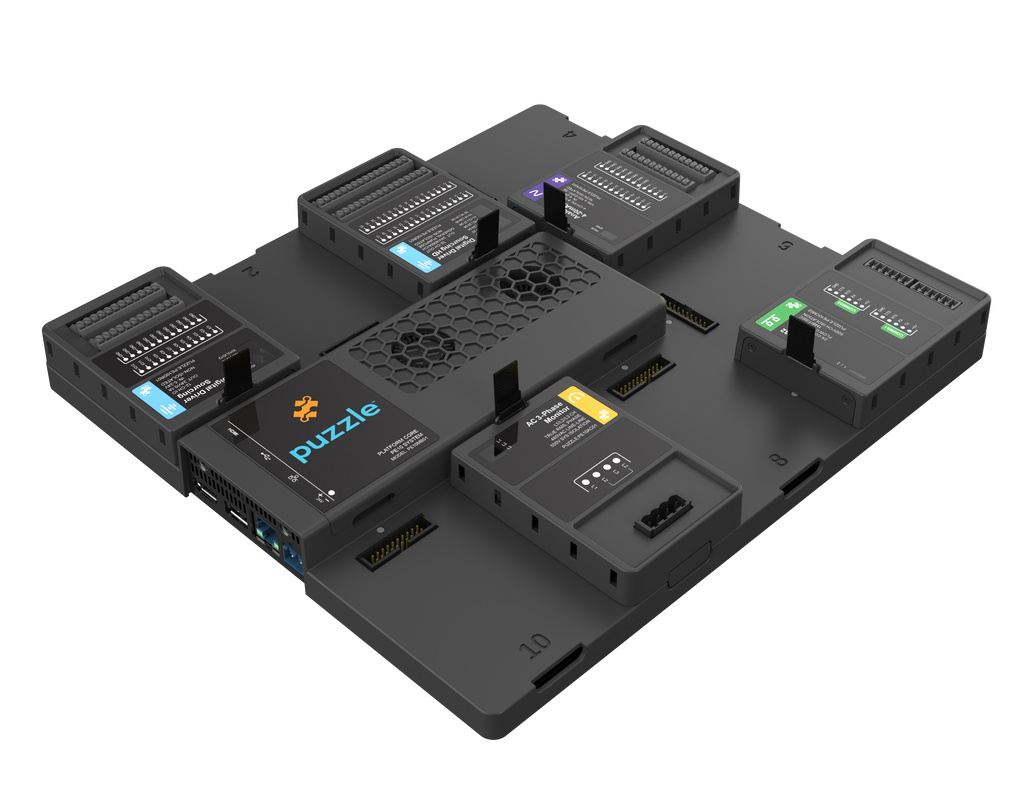

• PE10MB01 Platform Core

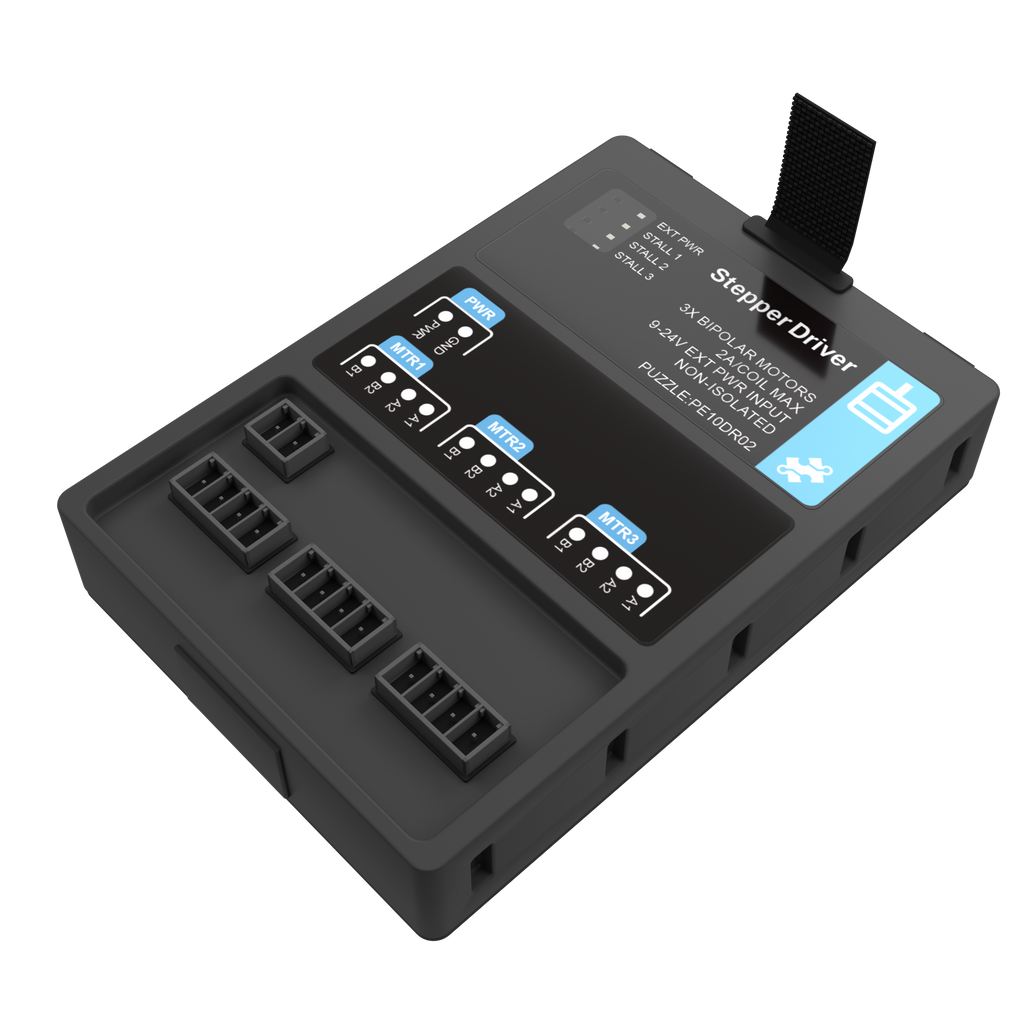

• PE10DR02 Stepper Driver

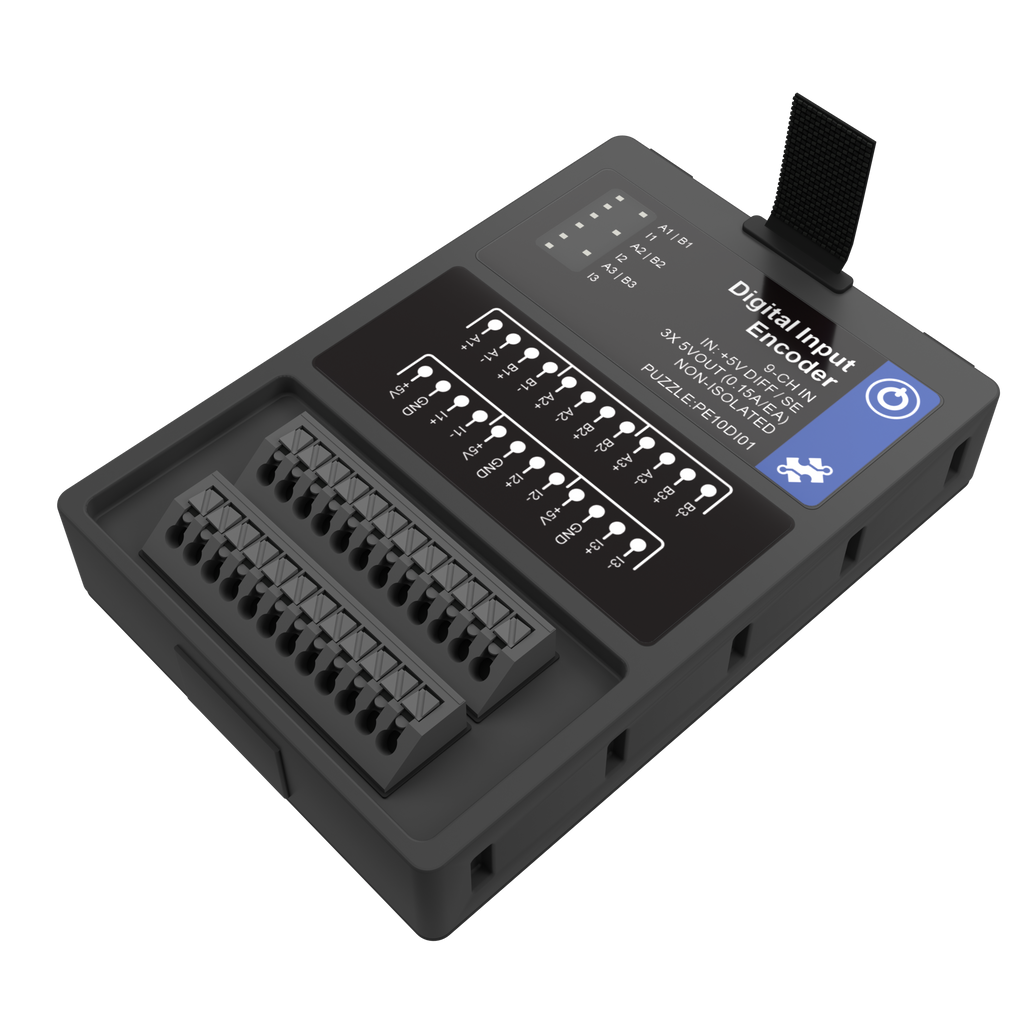

• PE10DI01 Digital Input / Encoder

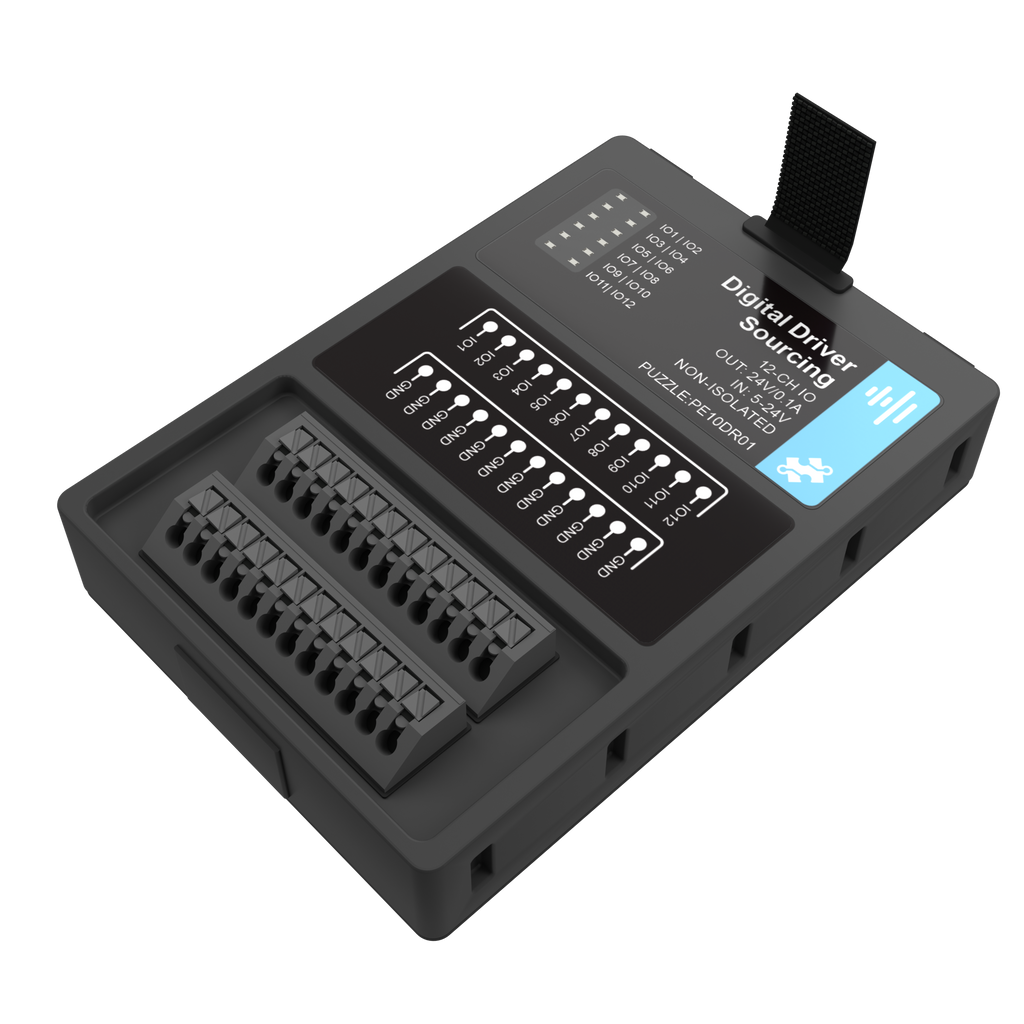

• PE10DR01 Digital Driver Sourcing
• PE10DM01 Digital I/O (step/direction, PWM or GPIO)

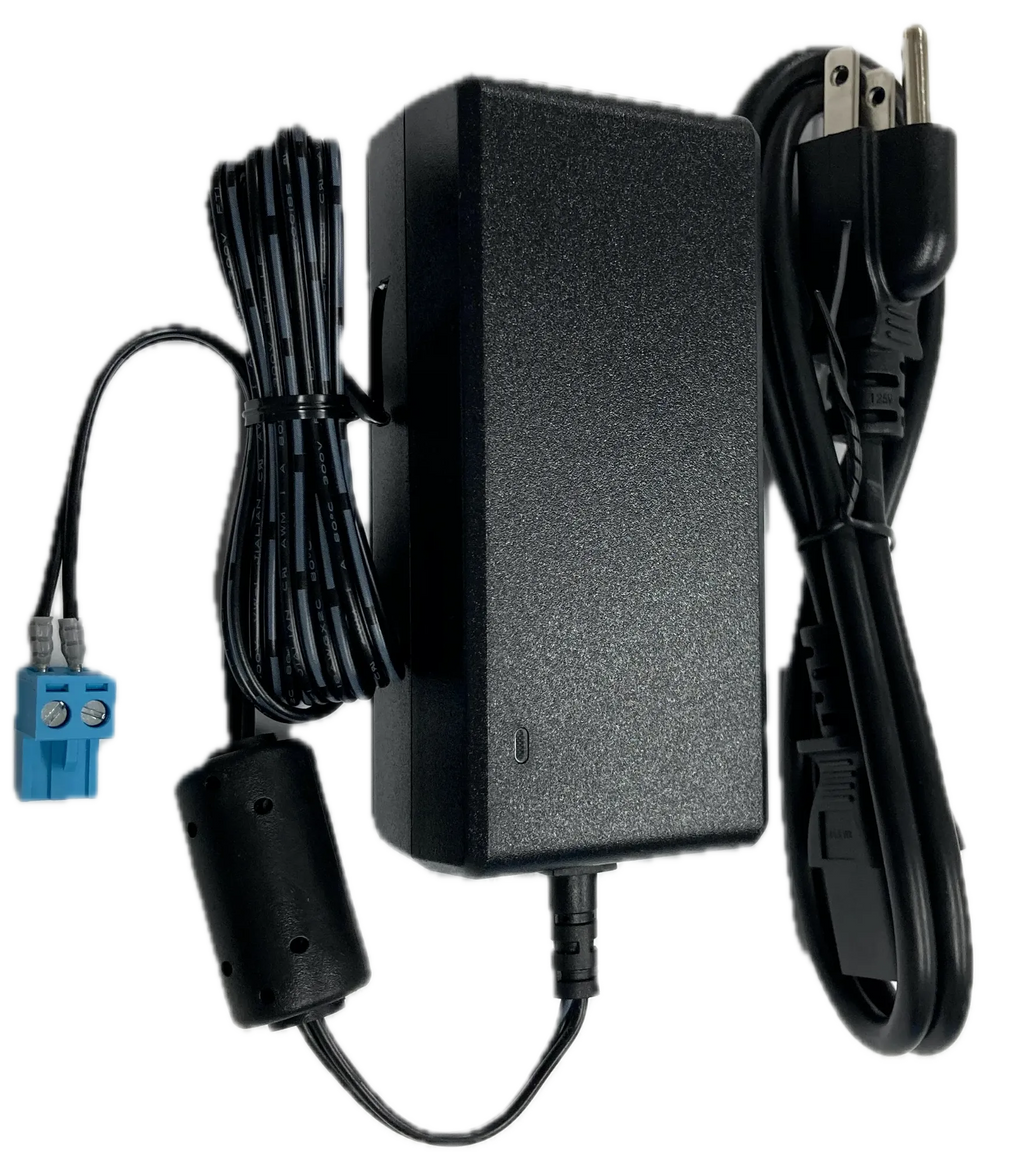

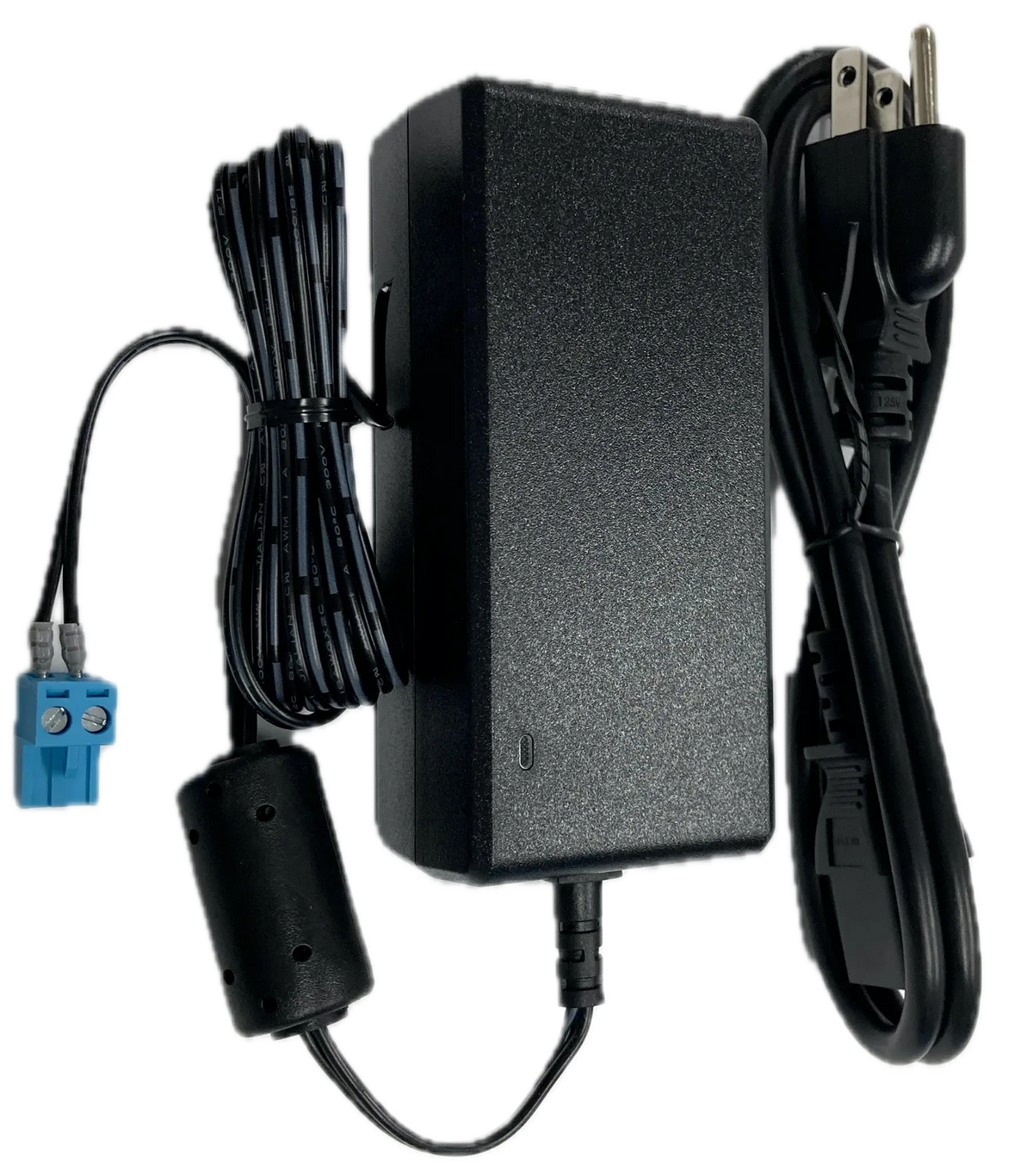

• ACC000001 Power Supply, 24 V, 65 W

Sensors, actuators and other accessories are customer-supplied.

Motors, encoders, switches and a separate 9–24 V motor supply are customer-supplied; the included supply powers the platform and modules. PE10DM01 supports compatible external step/direction drivers.

First project: home and cycle a positioning stage.

4 of 10 slots used, 6 free for more modules.

Kit price is the sum of the component list prices.

Delivery date confirmed within 2 business days of your order.
