Panel & AC Diagnostics Starter Kit

Develop panel diagnostics and electrical checks using AC voltage monitoring, conditioned DC measurements and high-density digital stimulus/readback. Suited to panel validation and production-test development.

Included hardware

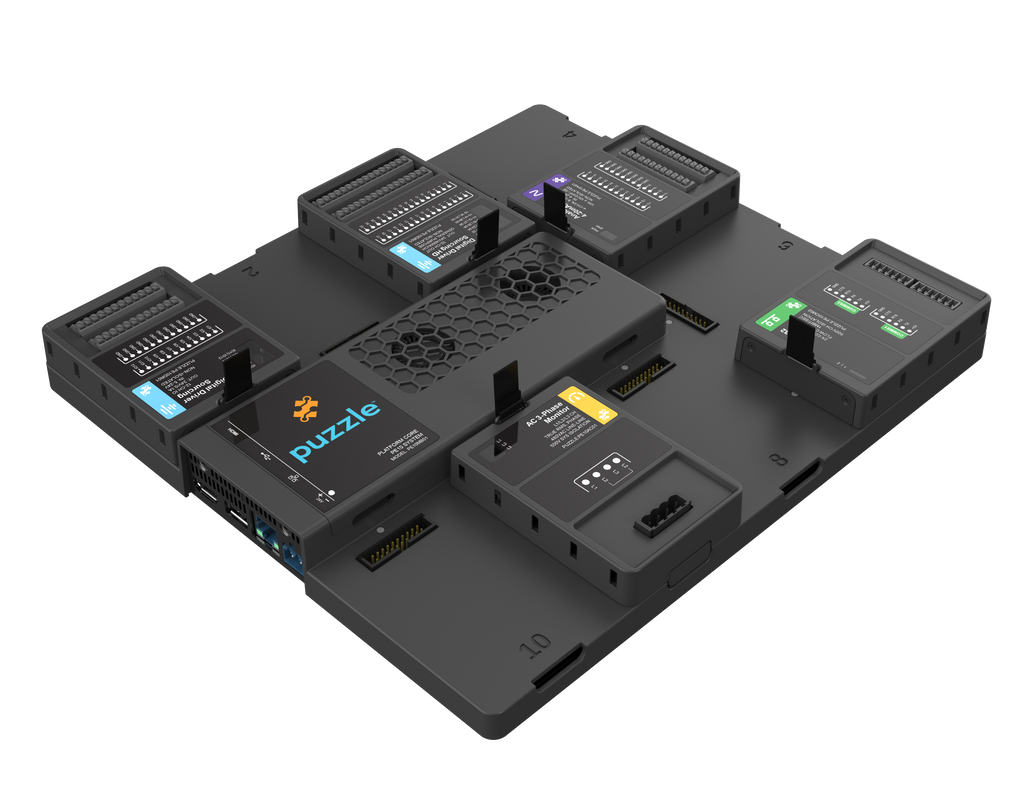

• PE10MB01 Platform Core

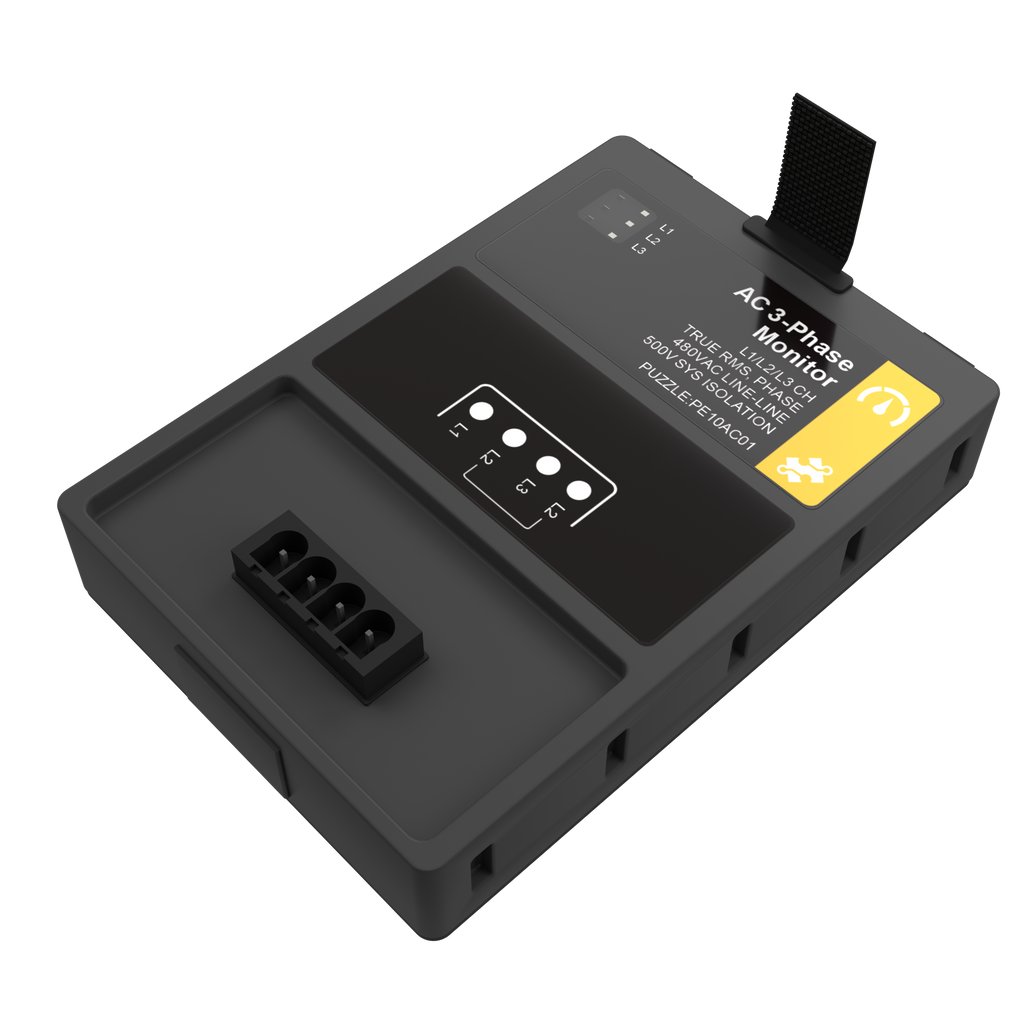

• PE10AC01 AC 3-Phase Monitor

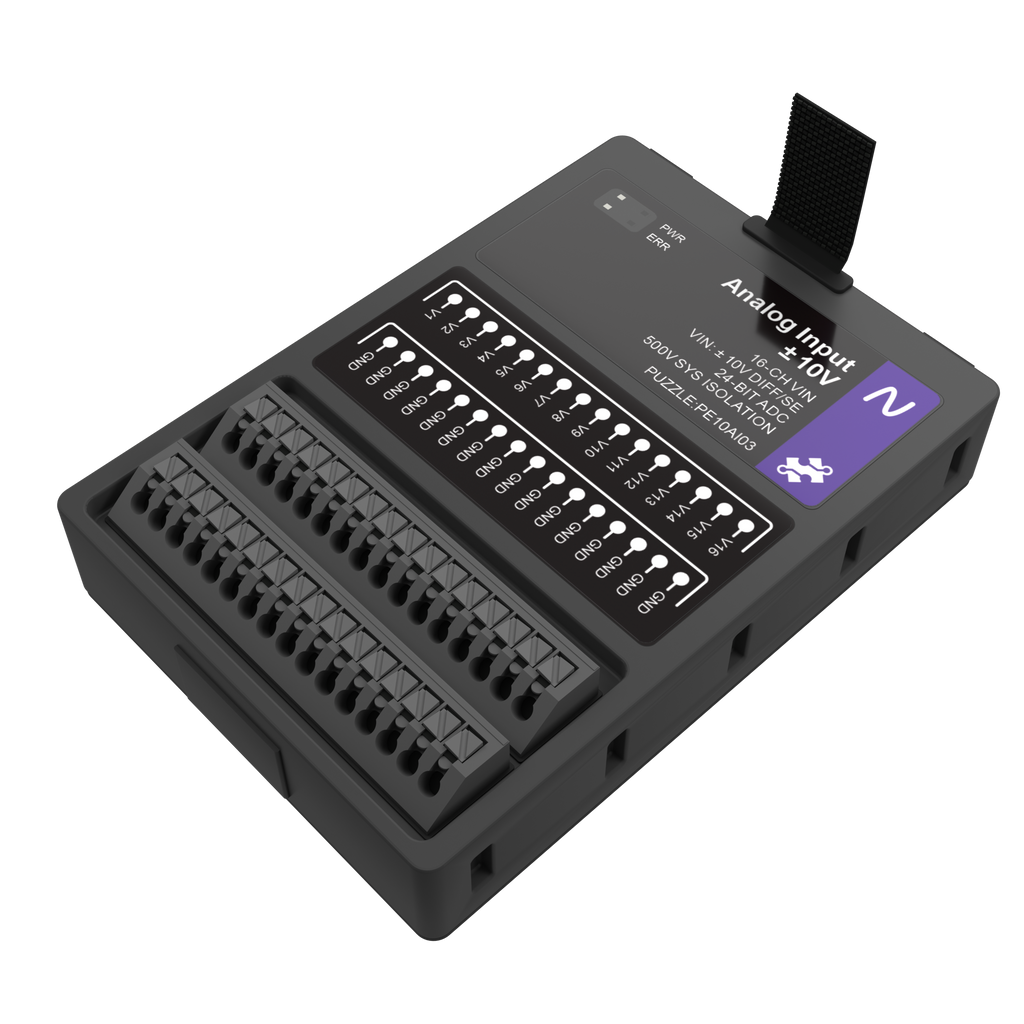

• PE10AI03 Analog Input ±10 V

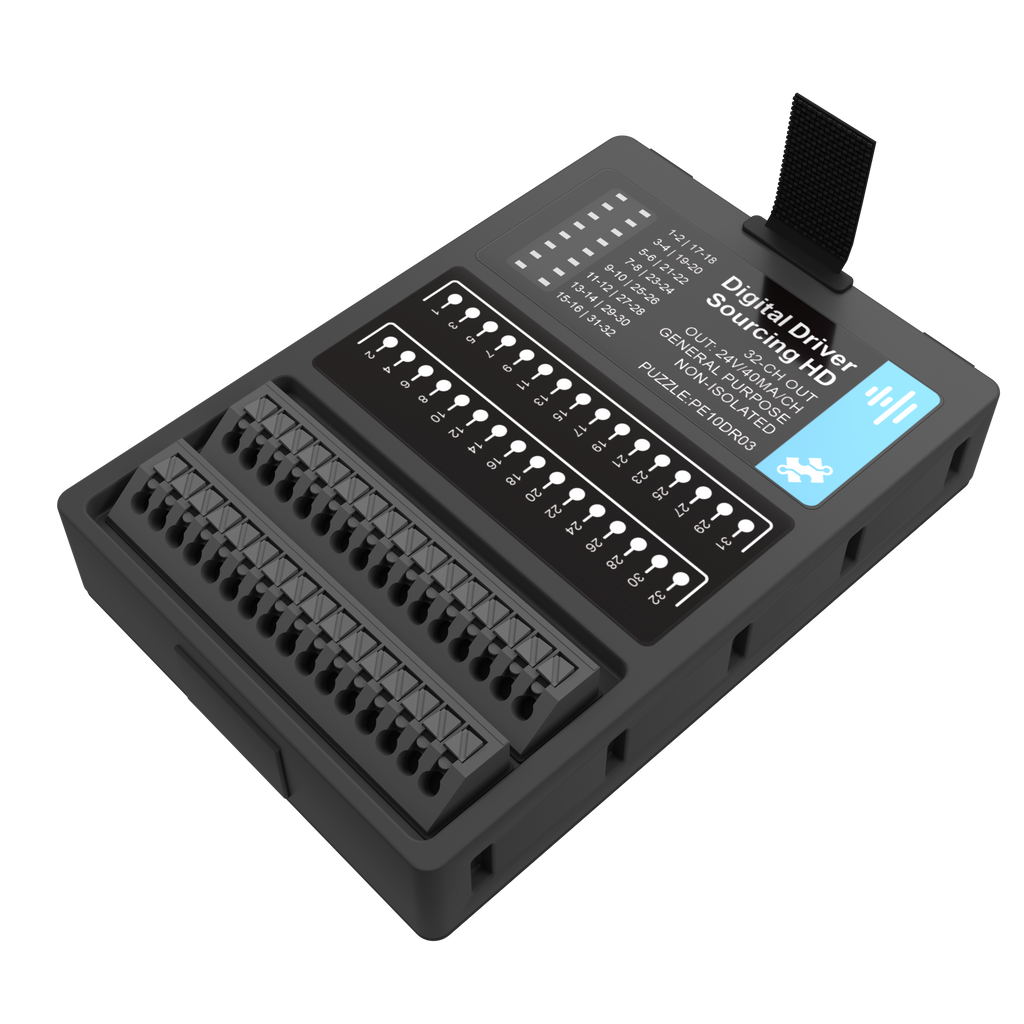

• PE10DR03 Digital Driver Sourcing HD
• PE10DI02 Digital Input HD

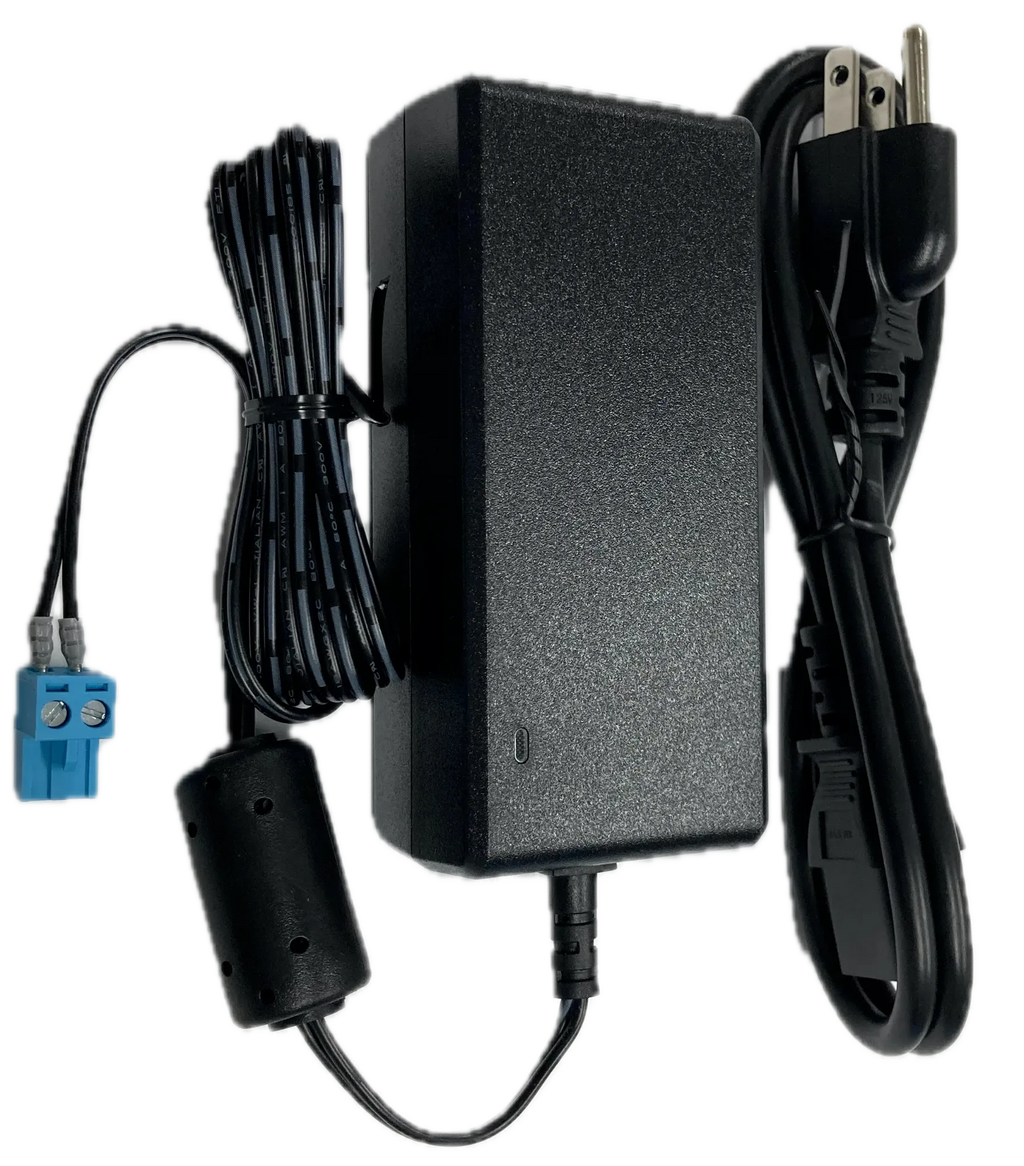

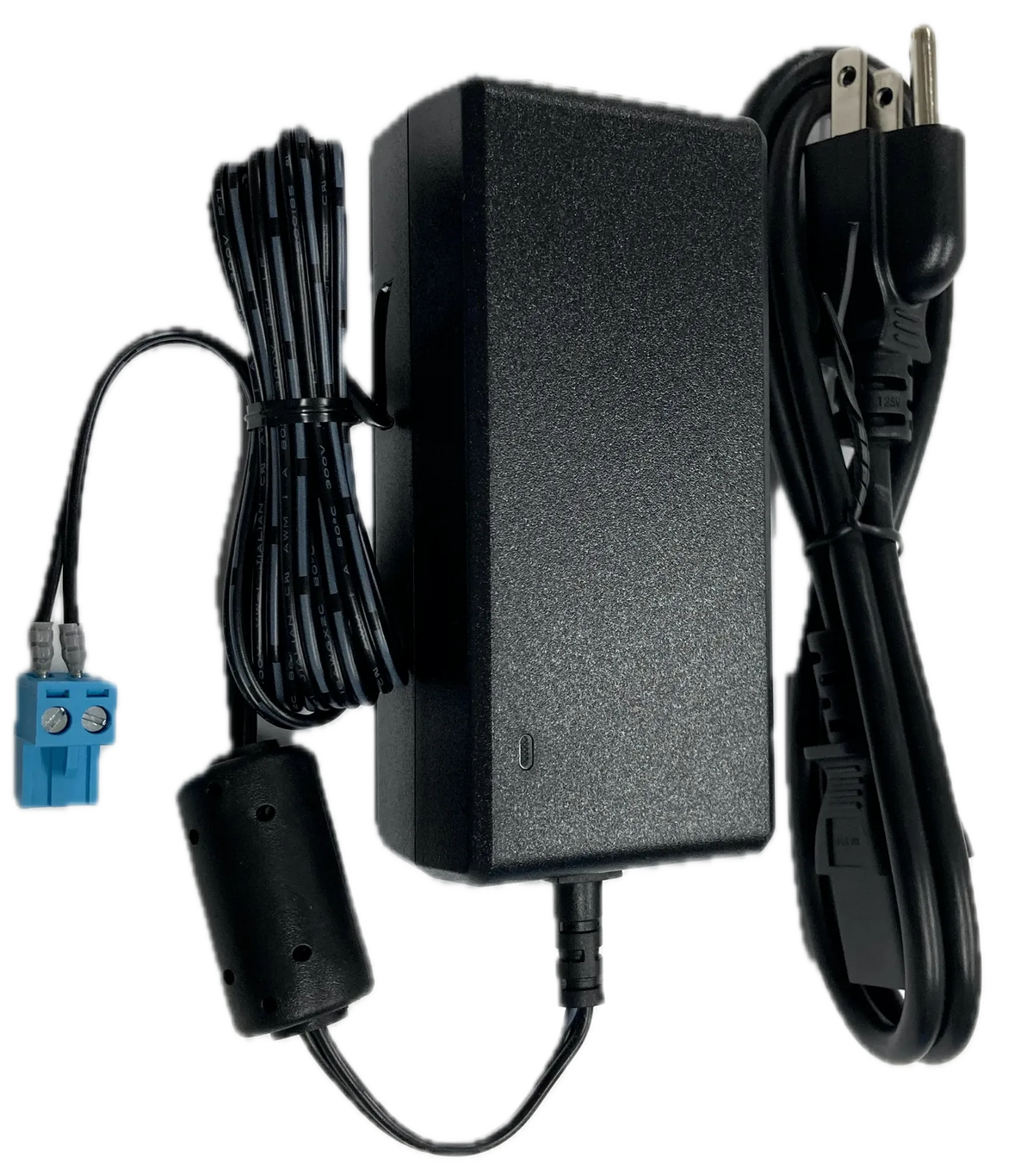

• ACC000001 Power Supply, 24 V, 65 W

Sensors, actuators and other accessories are customer-supplied.

First project: check a panel's supplies and I/O.

4 of 10 slots used, 6 free for more modules.

Kit price is the sum of the component list prices.

Delivery date confirmed within 2 business days of your order.
